    APC Smart-UPS 1500VA/980W, 230V (SU1500INET)

    Liên hệ

    Mã hàng: SU1500INET
    zalo call free090 375 8448
    091 575 8448

    Thông tin nhanh về sản phẩm

    SU1500INET
    APC Smart-UPS 1500VA, 980W, 230V
    APC Smart-UPS,980 Watts /1500 VA,Input 230V /Output 230V, Interface Port DB-9 RS-232, SmartSlot, USB

    THÔNG TIN THAY THẾ ẮC QUY CHO UPS
    (UPS BATTERY REPLACEMENT)
    Tên & số lượng bộ ắc quy lắp trong UPS
    (Internal battery cartridge name
    & quantity)    		 APCRBC7
    x 01
    BỘ SẠC BÌNH
    (BATTERY CHARGER)    		 24VDC/ 5.4A
    Bộ ắc quy lắp trong UPS
    (Internal battery pack)    		 =24VDC
    =1x 2x 12Vx 18Ah
    =432VAh
    =2 bình, mắc thành 1 chuỗi 24VDC.
    Tủ ắc quy lắp ngoài/
    Tủ ắc quy mở rộng
    (External battery cabinet/
    External extended battery cabinet)
    Thời gian sạc lại
    (Typical recharge time)    		 3+ giờ, tùy thuộc vào
    dung lượng (Ah) hoặc Công suất (W) của ắc quy.
    Ắc quy
    khuyến nghị thay thế cho UPS
    (Recommended replacement
    battery)    		 WP18-12SHR WPL18-12SHR
    WP20-12I WP20-12N
    WP20-12IE WP20-12NE
    Sản phẩm tương tự
    APC Smart-UPS 1500VA/980W, 230V (SU1500INET)

    APC Smart-UPS 1500VA/980W, 230V (SU1500INET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU1500INET
    APC Smart-UPS 1000VA/670W, 230V (SU1000INET)

    APC Smart-UPS 1000VA/670W, 230V (SU1000INET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU1000INET
    APC Smart-UPS 3000VA/2250W, 230V (SU3000INET)

    APC Smart-UPS 3000VA/2250W, 230V (SU3000INET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU3000INET
    APC Smart-UPS 5000VA/3750W, Tower/ Rackmount 5U XL 230V (SU5000RMXLI5U)

    APC Smart-UPS 5000VA/3750W, Tower/ Rackmount 5U XL 230V (SU5000RMXLI5U)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU5000RMXLI5U
    APC Smart-UPS 5000VA/3750W, Tower/ Rackmount 5U, 230V (SU5000RMI5U)

    APC Smart-UPS 5000VA/3750W, Tower/ Rackmount 5U, 230V (SU5000RMI5U)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU5000RMI5U
    APC Smart-UPS 700VA/450W, XL 230V (SU700XLINET)

    APC Smart-UPS 700VA/450W, XL 230V (SU700XLINET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU700XLINET

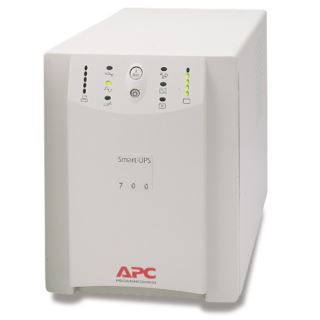

    APC Smart-UPS 700VA/450W, 230V (SU700INET)

    APC Smart-UPS 700VA/450W, 230V (SU700INET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU700INET
    APC Smart-UPS 1000VA/670W RM 3U 230V (SU1000RMINET)

    APC Smart-UPS 1000VA/670W RM 3U 230V (SU1000RMINET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU1000RMINET

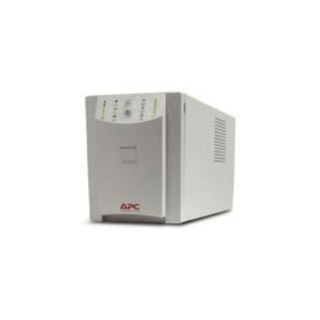

    APC Smart-UPS 1000VA/670W, XL 230V (SU1000XLINET)

    APC Smart-UPS 1000VA/670W, XL 230V (SU1000XLINET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU1000XLINET
    APC Smart-UPS 1400VA/950W, RM XL 5U 230V (SU1400RMXLINET)

    APC Smart-UPS 1400VA/950W, RM XL 5U 230V (SU1400RMXLINET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU1400RMXLINET

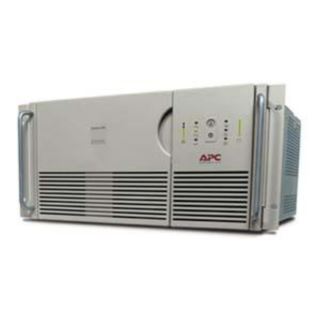

    APC Smart-UPS 2200VA/ 1600W, RM, 230V (SU2200RMI)

    APC Smart-UPS 2200VA/ 1600W, RM, 230V (SU2200RMI)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU2200RMI
    APC Smart-UPS 2200VA/1600W, 230V (SU2200I)

    APC Smart-UPS 2200VA/1600W, 230V (SU2200I)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU2200I
    APC Smart-UPS 2200VA/1600W, 230V RM NET (SU2200RMINET)

    APC Smart-UPS 2200VA/1600W, 230V RM NET (SU2200RMINET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU2200RMINET
    APC Smart-UPS 2200VA/1600W, XL, 230VAC (SU2200XLI)

    APC Smart-UPS 2200VA/1600W, XL, 230VAC (SU2200XLI)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU2200XLI
    APC Smart-UPS XL 2200VA/1600W, RM 5U 230V (SU2200RMXLINET)

    APC Smart-UPS XL 2200VA/1600W, RM 5U 230V (SU2200RMXLINET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU2200RMXLINET

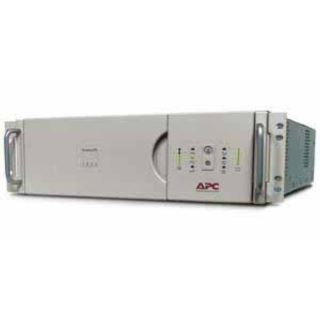

    APC SMART-UPS 2200VA/1600W, RM 3U 230V (SU2200RMI3U)

    APC SMART-UPS 2200VA/1600W, RM 3U 230V (SU2200RMI3U)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU2200RMI3U

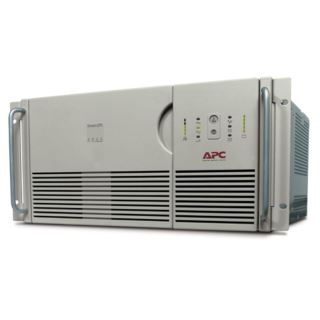

    APC Smart-UPS 3000VA/2250W, RM 5U 230V (SU3000RMINET)

    APC Smart-UPS 3000VA/2250W, RM 5U 230V (SU3000RMINET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU3000RMINET
    APC Smart-UPS 700VA/450W RM 3U 230V PC+ (SU700RMINET)

    APC Smart-UPS 700VA/450W RM 3U 230V PC+ (SU700RMINET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU700RMINET
    Thông số kỹ thuật

    Output

    Output Power Capacity
    980 Watts / 1500 VA
    Max Configurable Power
    980 Watts / 1500 VA
    Nominal Output Voltage
    230V
    Output Voltage Note
    Configurable for 220 : 230 or 240 nominal output voltage
    Output Voltage Distortion
    Less than 5% at full load
    Output Frequency (sync to mains)
    47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
    Topology
    Line Interactive
    Waveform Type
    Sine wave
    Output Connections
    (8) IEC 320 C13 IEC 320 C13
    (2) IEC Jumpers

    Input

    Nominal Input Voltage
    230V
    Input Frequency
    50/60 Hz +/- 3 Hz (auto sensing)
    Input Connections
    IEC-320 C14
    Input voltage range for main operations
    160 - 286V
    Input voltage adjustable range for mains operation
    151 - 302V

    Batteries & Runtime

    Battery Type
    Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
    Typical recharge time
    3 hour(s)
    Replacement Battery
    RBC7
    RBC™ Quantity
    1
    Runtime Graph
    Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

    Communications & Management

    Interface Port(s)
    DB-9 RS-232, SmartSlot, USB
    Available SmartSlot™ Interface Quantity
    1
    Control panel
    LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
    Audible Alarm
    Alarm when on battery : distinctive low battery alarm : configurable delays
    Emergency Power Off (EPO)
    Tùy chọn

    Surge Protection and Filtering

    Surge energy rating
    480 Joules
    Filtering
    Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

    Physical

    Maximum Height
    216.00 mm
    Maximum Width
    170.00 mm
    Maximum Depth
    439.00 mm
    Net Weight
    24.09 KG
    Shipping Weight
    27.00 KG
    Shipping Height
    370.00 mm
    Shipping Width
    330.00 mm
    Shipping Depth
    590.00 mm
    Master Carton Units
    1.00
    Color
    Black
    Units per Pallet
    18.00

    Environmental

    Operating Environment
    0 - 40 °C
    Operating Relative Humidity
    0 - 95%
    Operating Elevation
    0-3000 meters
    Storage Temperature
    -15 - 45 °C
    Storage Relative Humidity
    0 - 95%
    Storage Elevation
    0-15000 meters
    Audible noise at 1 meter from surface of unit
    45.00 dBA
    Online Thermal Dissipation
    135.00 BTU/hr

    Conformance

    Regulatory Approvals
    C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE
    Standard Warranty
    2 years repair or replace

    Sustainable Offer Status

    RoHS
    Compliant
    REACH
    REACH: Contains No SVHCs
    PEP
    Available in Documentation tab
    EOLI
    Available in Documentation tab
    Other Environmental Compliance
    China RoHS
    Vật tư linh kiện
    ẮC QUY KÍN KHÍ (VRLA AGM) LONG 12V-18Ah (20HR), WP18-12SHR, F3-M5

    ẮC QUY KÍN KHÍ (VRLA AGM) LONG 12V-18Ah (20HR), WP18-12SHR, F3-M5

    Đơn giá (VND): 829,000 + VAT
    Mã hàng: WP18-12SHR
    ẮC QUY KÍN KHÍ (VRLA AGM) LONG 12V-18Ah (20HR), WPL18-12SHR, F3-M5

    ẮC QUY KÍN KHÍ (VRLA AGM) LONG 12V-18Ah (20HR), WPL18-12SHR, F3-M5

    Đơn giá (VND): 975,000 + VAT
    Mã hàng: WPL18-12SHR
    Sản phẩm cùng nhóm
    APC Easy UPS On-Line, 6kVA/6kW, Tower, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime (SRV6KRIL)

    APC Easy UPS On-Line, 6kVA/6kW, Tower, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime (SRV6KRIL)

    Đơn giá (VND): Liên hệ
    Mã hàng: SRV6KRIL
    APC Easy UPS On-Line SRV Battery Pack (6/10kVA) for Extended Runtime Model 240V, 2160VAh, rackmount with kit, 3U (SRV240RLBP-9A, SRVS240RLBP-9A)

    APC Easy UPS On-Line SRV Battery Pack (6/10kVA) for Extended Runtime Model 240V, 2160VAh, rackmount with kit, 3U (SRV240RLBP-9A, SRVS240RLBP-9A)

    Đơn giá (VND): Liên hệ
    Mã hàng: SRV240RLBP-9A, SRVS240RLBP-9A
    Easy UPS 1 Ph On-Line, 6kVA/6kW, Rackmount 2U, 230V, 1x Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, No battery, W/O rail kit (SRVSPM6KRI)

    Easy UPS 1 Ph On-Line, 6kVA/6kW, Rackmount 2U, 230V, 1x Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, No battery, W/O rail kit (SRVSPM6KRI)

    Đơn giá (VND): Liên hệ
    Mã hàng: SRVSPM6KRI

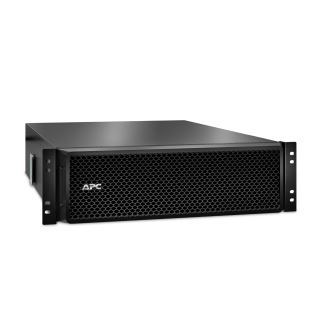

    APC Smart-UPS On-Line SRT Battery Pack (3U) for 8/10kVA Extended runtime model 192V (SRT192BP2, SRT192RMBP2)

    APC Smart-UPS On-Line SRT Battery Pack (3U) for 8/10kVA Extended runtime model 192V (SRT192BP2, SRT192RMBP2)

    Đơn giá (VND): 2,800,000 + VAT
    Mã hàng: SRT192BP2, SRT192RMBP2

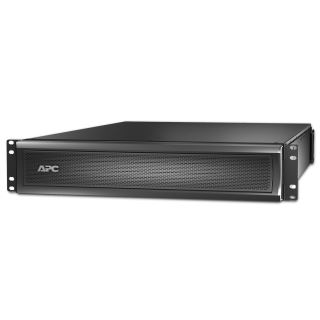

    APC Smart-UPS X Battery pack for Extended runtime, Rack/Tower 2U, 120Vdc (SMX120RMBP2U)

    APC Smart-UPS X Battery pack for Extended runtime, Rack/Tower 2U, 120Vdc (SMX120RMBP2U)

    Đơn giá (VND): Liên hệ
    Mã hàng: SMX120RMBP2U

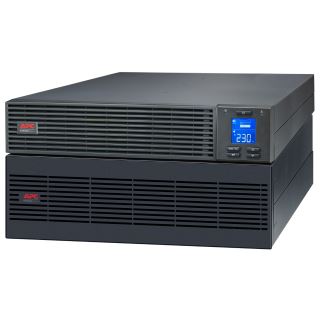

    APC Easy UPS On-Line SRV 10kVA/10kW, Rackmount 5U, 230V, with Extended Runtime Battery Pack (SRV10KRIL, SRV10KRILRK, SRV10KRIL31, SRV10KRIL31RK)

    APC Easy UPS On-Line SRV 10kVA/10kW, Rackmount 5U, 230V, with Extended Runtime Battery Pack (SRV10KRIL, SRV10KRILRK, SRV10KRIL31, SRV10KRIL31RK)

    Đơn giá (VND): Liên hệ
    Mã hàng: SRV10KRIL, SRV10KRILRK, SRV10KRIL31, SRV10KRIL31RK

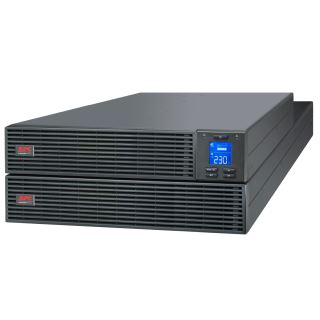

    APC Easy UPS On-Line, 10kVA/10kW, Rackmount 4U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD (SRV10KRI, SRV10KRIRK)

    APC Easy UPS On-Line, 10kVA/10kW, Rackmount 4U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD (SRV10KRI, SRV10KRIRK)

    Đơn giá (VND): Liên hệ
    Mã hàng: SRV10KRI, SRV10KRIRK

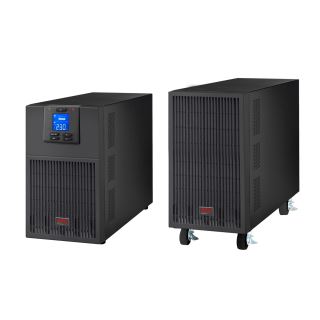

    APC Easy UPS On-Line, 10kVA/10kW, Tower, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime (SRV10KIL)

    APC Easy UPS On-Line, 10kVA/10kW, Tower, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime (SRV10KIL)

    Đơn giá (VND): Liên hệ
    Mã hàng: SRV10KIL

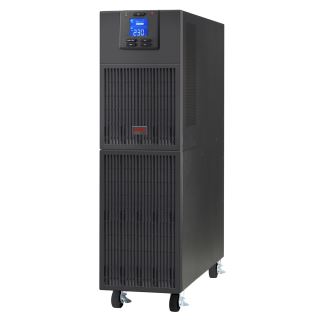

    APC Easy UPS On-Line, 10kVA/10kW, Tower, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD (SRV10KI)

    APC Easy UPS On-Line, 10kVA/10kW, Tower, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD (SRV10KI)

    Đơn giá (VND): Liên hệ
    Mã hàng: SRV10KI

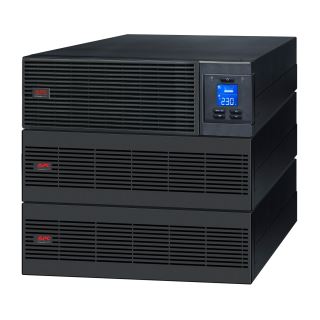

    APC Easy UPS On-Line, 15kVA/15kW, Rackmount 9U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit (SRV15KRILRK)

    APC Easy UPS On-Line, 15kVA/15kW, Rackmount 9U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit (SRV15KRILRK)

    Đơn giá (VND): Liên hệ
    Mã hàng: SRV15KRILRK
    APC Easy UPS On-Line, 20kVA/20kW, Rackmount 9U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit (SRV20KRILRK)

    APC Easy UPS On-Line, 20kVA/20kW, Rackmount 9U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit (SRV20KRILRK)

    Đơn giá (VND): Liên hệ
    Mã hàng: SRV20KRILRK

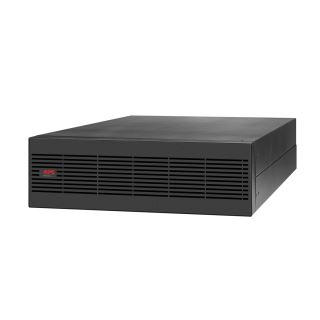

    APC Easy UPS On-Line SRV 120V RM Battery Pack for 15/20kVA Rack Extended Runtime Model (SRV120RLBP2-9A)
