Trang chủ› BỘ LƯU ĐIỆN›

    APC

    APC BACK UPS RS 1000VA/600W, 230V (BR1000I)

    Liên hệ

    Mã hàng: BR1000I
    zalo call free090 375 8448
    091 575 8448

    Thông tin nhanh về sản phẩm

    BR1000I
    APC BACK-UPS RS 1000VA/ 600W, 230V

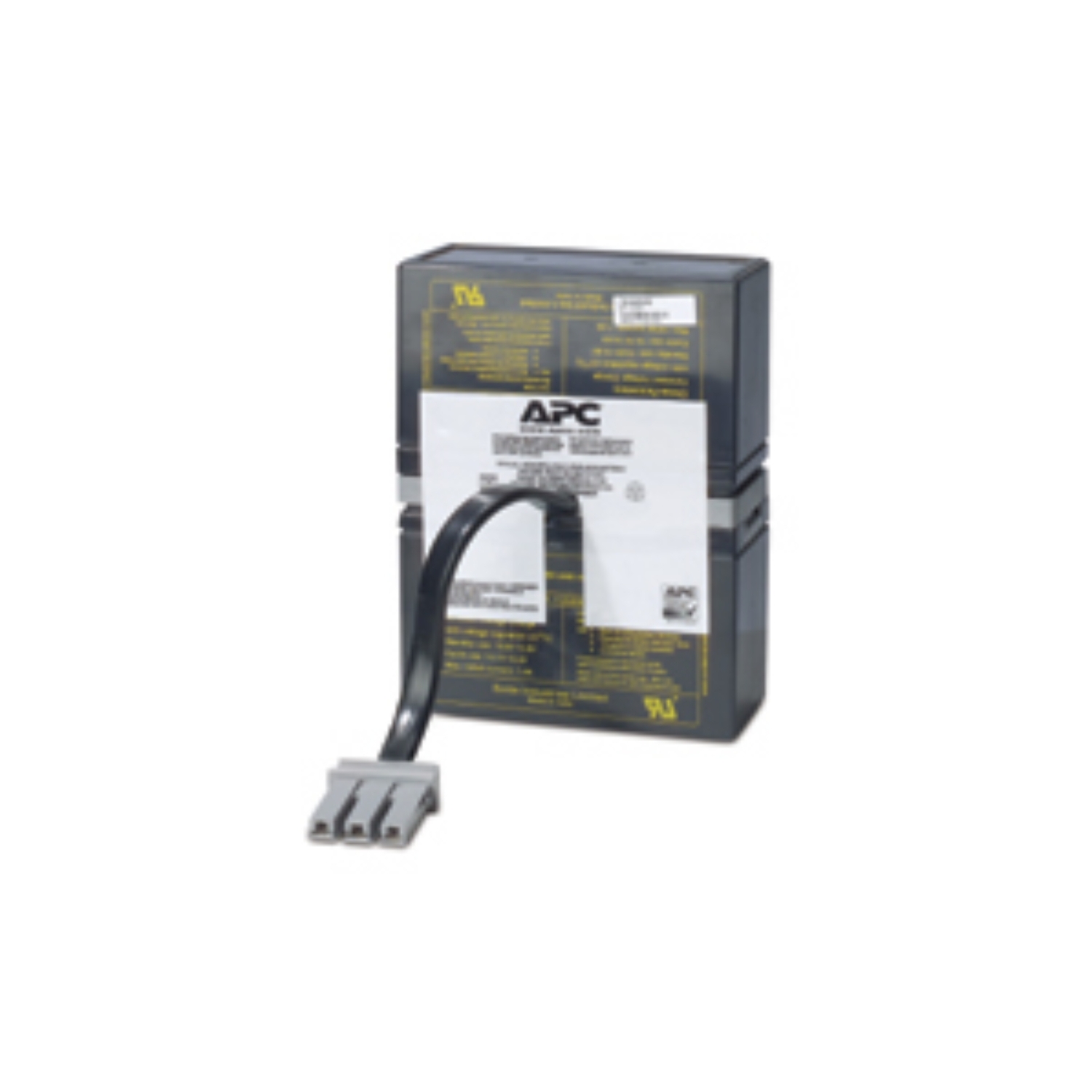

    THÔNG TIN THAY THẾ ẮC QUY CHO UPS (BATTERY REPLACEMENT)
    Tên, số lượng bộ ắc quy lắp mặc định
    (Replacement battery cartridge)    		 APCRBC32
    x 01
    Bộ sạc & Tổ ắc quy lắp mặc định
    (UPS charger & Internal battery pack)    		 24VDC
    =1x 2x 12Vx 7AH~9AH
    =168~216VAh
    Tủ ắc quy mở rộng
    (External extended battery cabinet)
    Thời gian sạc lại cho khối ắc quy mặc định
    (Typical recharge time for internal battery pack)    		 15 giờ
    Ắc quy khuyến nghị thay thế cho UPS
    (Recommend battery replacement)    		 Bộ ắc quy APCRBC32 gồm 2 bình ắc quy mắc nối tiếp.
    Có thể dùng một trong các mã bình sau:
    WP7.2-12
    WP7-12(28W) | WP1234W | WP1236W | WP9-12SHR
    WPL7.2-12 | WPL1235W
    WXL1235W
    Thông số kỹ thuật

    Output

    Output Power Capacity
    600 Watts / 1000 VA
    Max Configurable Power
    600 Watts / 1000 VA
    Nominal Output Voltage
    230V
    Topology
    Line Interactive
    Output Connections
    (2) IEC 320 C13 (Surge Protection) IEC 320 C13
    (6) IEC 320 C13 (Battery Backup) IEC 320 C13

    Input

    Nominal Input Voltage
    230V
    Input Frequency
    47 - 63 Hz
    Input Connections
    IEC-320 C14
    Input voltage range for main operations
    175 - 295V
    Input voltage adjustable range for mains operation
    160 - 286V

    Batteries & Runtime

    Battery Type
    Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
    Included Battery Modules
    1
    Typical recharge time
    15 hour(s)
    Replacement Battery
    RBC32
    RBC™ Quantity
    1

    Communications & Management

    Interface Port(s)
    USB
    Control panel
    LED status display with On Line : On Battery : Replace Battery and Overload indicators
    Audible Alarm
    Alarm when on battery : distinctive low battery alarm : configurable delays

    Surge Protection and Filtering

    Surge energy rating
    180 Joules
    Filtering
    Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
    Data Line Protection
    RJ-11 Modem/Fax/DSL protection (two wire single line), RJ45 10/100 Base-T Ethernet protection

    Physical

    Maximum Height
    371.00 mm
    Maximum Width
    86.00 mm
    Maximum Depth
    333.00 mm
    Rack Height
    2U
    Net Weight
    10.61 KG
    Shipping Weight
    11.82 KG
    Shipping Height
    455.00 mm
    Shipping Width
    203.00 mm
    Shipping Depth
    416.00 mm
    Master Carton Units
    1.00
    Color
    Beige
    Units per Pallet
    30.00

    Environmental

    Operating Environment
    0 - 40 °C
    Operating Relative Humidity
    0 - 95%
    Operating Elevation
    0-3000 meters
    Storage Temperature
    -5 - 45 °C
    Storage Relative Humidity
    0 - 95%
    Storage Elevation
    0-15000 meters
    Audible noise at 1 meter from surface of unit
    45.00 dBA
    Online Thermal Dissipation
    180.00 BTU/hr

    Conformance

    Regulatory Approvals
    A-tick, C-tick, CE, GOST, VDE
    Standard Warranty
    2 years repair or replace

    Sustainable Offer Status

    RoHS
    Compliant
    Vật tư linh kiện
    ẮC QUY KÍN KHÍ (VRLA AGM) LONG 12V-28WPC-1.6VPC-15Min, WP7-12 (28W), F2

    ẮC QUY KÍN KHÍ (VRLA AGM) LONG 12V-28WPC-1.6VPC-15Min, WP7-12 (28W), F2

    Đơn giá (VND): 310,000 + VAT
    Mã hàng: WP7-12 (28W) [12V 7AH]
    ẮC QUY KÍN KHÍ (VRLA AGM) LONG 12V-7.2Ah (20HR), WP7.2-12, F2

    ẮC QUY KÍN KHÍ (VRLA AGM) LONG 12V-7.2Ah (20HR), WP7.2-12, F2

    Đơn giá (VND): 321,000 + VAT
    Mã hàng: WP7.2-12
    ẮC QUY KÍN KHÍ (VRLA AGM) LONG 12V-7.2Ah (20HR), WPL7.2-12, F2

    ẮC QUY KÍN KHÍ (VRLA AGM) LONG 12V-7.2Ah (20HR), WPL7.2-12, F2

    Đơn giá (VND): 402,000 + VAT
    Mã hàng: WPL7.2-12
    ẮC QUY KÍN KHÍ (VRLA AGM) LONG 12V-34WPC-1.6VPC-15Min, WP1234W, F2

    ẮC QUY KÍN KHÍ (VRLA AGM) LONG 12V-34WPC-1.6VPC-15Min, WP1234W, F2

    Đơn giá (VND): Liên hệ
    Mã hàng: WP1234W [12V 8.5AH]
    ẮC QUY KÍN KHÍ (VRLA AGM) LONG 12V-35WPC-1.6VPC-15Min, WPL1235W, F2

    ẮC QUY KÍN KHÍ (VRLA AGM) LONG 12V-35WPC-1.6VPC-15Min, WPL1235W, F2

    Đơn giá (VND): 459,000 + VAT
    Mã hàng: WPL1235W [12V 8.5AH]
    ẮC QUY KÍN KHÍ (VRLA AGM) LONG 12V-36WPC-1.6VPC-15Min, WP1236W, F2

    ẮC QUY KÍN KHÍ (VRLA AGM) LONG 12V-36WPC-1.6VPC-15Min, WP1236W, F2

    Đơn giá (VND): 367,000 + VAT
    Mã hàng: WP1236W [12V 9AH]
