    APC Smart-UPS 5000VA/3750W, Tower/ Rackmount 5U, 230V (SU5000RMI5U)

    Liên hệ

    Mã hàng: SU5000RMI5U
    zalo call free090 375 8448
    091 575 8448

    Thông tin nhanh về sản phẩm

    SU5000RMI5U
    APC Smart-UPS 5000VA/ 3750Watts, Rackmount 5U, 230V

    UPS ĐÃ QUA SỬ DỤNG, CHƯA BAO GỒM ẮC QUY

    THÔNG TIN THAY THẾ ẮC QUY CHO UPS (BATTERY REPLACEMENT)
    Tên, số lượng bộ ắc quy lắp mặc định
    (Replacement battery cartridge)    		 RBC12
    x 02
    Bộ sạc & Tổ ắc quy lắp mặc định
    (UPS charger & Internal battery pack)    		 48VDC/ 216W
    =4x 4x 12Vx 7AH~9AH
    =1,344~1,728VAh
    Tủ ắc quy mở rộng
    (External extended battery cabinet)
    Thời gian sạc lại cho khối ắc quy mặc định
    (Typical recharge time for internal battery pack)    		 6.2 giờ
    Ắc quy khuyến nghị thay thế cho UPS
    (Recommend battery replacement)    		 WP7-12(28W) hoặc
    WP7.2-12, WPL7.2-12 hoặc
    WP1234W, WP1236W, WPL1235W

    Sản phẩm tương tự

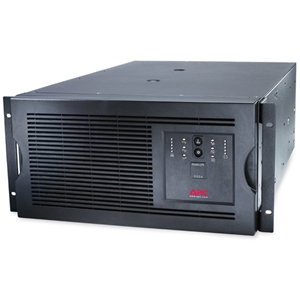

    APC Smart UPS 5000VA/4000W, 230V Tower/ Rackmount 5U (SUA5000RMI5U)

    APC Smart UPS 5000VA/4000W, 230V Tower/ Rackmount 5U (SUA5000RMI5U)

    Đơn giá (VND): 6,500,000 + VAT
    Mã hàng: SUA5000RMI5U
    APC Smart-UPS 3000VA/2250W, 230V (SU3000INET)

    APC Smart-UPS 3000VA/2250W, 230V (SU3000INET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU3000INET
    APC Smart-UPS 5000VA/3750W, Tower/ Rackmount 5U, 230V (SU5000RMI5U)

    APC Smart-UPS 5000VA/3750W, Tower/ Rackmount 5U, 230V (SU5000RMI5U)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU5000RMI5U
    APC Smart-UPS 1500VA/980W, 230V (SU1500INET)

    APC Smart-UPS 1500VA/980W, 230V (SU1500INET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU1500INET
    APC Smart-UPS 1000VA/670W, 230V (SU1000INET)

    APC Smart-UPS 1000VA/670W, 230V (SU1000INET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU1000INET
    APC Smart-UPS 5000VA/3750W, Tower/ Rackmount 5U XL 230V (SU5000RMXLI5U)

    APC Smart-UPS 5000VA/3750W, Tower/ Rackmount 5U XL 230V (SU5000RMXLI5U)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU5000RMXLI5U
    APC Smart-UPS 2200VA/ 1600W, RM, 230V (SU2200RMI)

    APC Smart-UPS 2200VA/ 1600W, RM, 230V (SU2200RMI)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU2200RMI
    APC Smart-UPS 2200VA/1600W, 230V (SU2200I)

    APC Smart-UPS 2200VA/1600W, 230V (SU2200I)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU2200I
    APC Smart-UPS 2200VA/1600W, 230V RM NET (SU2200RMINET)

    APC Smart-UPS 2200VA/1600W, 230V RM NET (SU2200RMINET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU2200RMINET
    APC Smart-UPS 2200VA/1600W, XL, 230VAC (SU2200XLI)

    APC Smart-UPS 2200VA/1600W, XL, 230VAC (SU2200XLI)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU2200XLI
    APC Smart-UPS XL 2200VA/1600W, RM 5U 230V (SU2200RMXLINET)

    APC Smart-UPS XL 2200VA/1600W, RM 5U 230V (SU2200RMXLINET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU2200RMXLINET
    APC SMART-UPS 2200VA/1600W, RM 3U 230V (SU2200RMI3U)

    APC SMART-UPS 2200VA/1600W, RM 3U 230V (SU2200RMI3U)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU2200RMI3U
    APC Smart-UPS 3000VA/2250W, RM 5U 230V (SU3000RMINET)

    APC Smart-UPS 3000VA/2250W, RM 5U 230V (SU3000RMINET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU3000RMINET
    APC Smart-UPS 700VA/450W, XL 230V (SU700XLINET)

    APC Smart-UPS 700VA/450W, XL 230V (SU700XLINET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU700XLINET
    APC Smart-UPS 700VA/450W, 230V (SU700INET)

    APC Smart-UPS 700VA/450W, 230V (SU700INET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU700INET
    APC Smart-UPS 1000VA/670W RM 3U 230V (SU1000RMINET)

    APC Smart-UPS 1000VA/670W RM 3U 230V (SU1000RMINET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU1000RMINET
    APC Smart-UPS 1000VA/670W, XL 230V (SU1000XLINET)

    APC Smart-UPS 1000VA/670W, XL 230V (SU1000XLINET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU1000XLINET
    APC Smart-UPS 1400VA/950W, RM XL 5U 230V (SU1400RMXLINET)

    APC Smart-UPS 1400VA/950W, RM XL 5U 230V (SU1400RMXLINET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU1400RMXLINET
    APC Smart-UPS 700VA/450W RM 3U 230V PC+ (SU700RMINET)

    APC Smart-UPS 700VA/450W RM 3U 230V PC+ (SU700RMINET)

    Đơn giá (VND): Liên hệ
    Mã hàng: SU700RMINET
    Thông số kỹ thuật

    Output

    Output Power Capacity
    3750 Watts / 5000 VA
    Max Configurable Power
    3750 Watts / 5000 VA
    Nominal Output Voltage
    230V
    Output Voltage Note
    Configurable for 220 : 230 or 240 nominal output voltage
    Output Voltage Distortion
    Less than 5% at full load
    Output Frequency (sync to mains)
    47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
    Crest Factor
    up to 5 : 1
    Topology
    Line Interactive
    Waveform Type
    Sine wave
    Output Connections
    (8) IEC 320 C13 IEC 320 C13
    (2) IEC 320 C19 IEC 320 C19
    (6) IEC Jumpers

    Input

    Nominal Input Voltage
    230V
    Input Frequency
    50/60 Hz +/- 3 Hz (auto sensing)
    Input Connections
    Hard Wire 3-wire
    Input voltage range for main operations
    174 - 286V
    Input voltage adjustable range for mains operation
    168 - 302V

    Batteries & Runtime

    Battery Type
    Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
    Typical recharge time
    6.20 hour(s)
    Replacement Battery
    RBC12
    RBC™ Quantity
    2
    Runtime Graph

    Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
    Communications & Management
    Interface Port(s)
    DB-9 RS-232, RJ-45 10/100 Base-T, SmartSlot
    Available SmartSlot™ Interface Quantity
    1
    Pre-Installed SmartSlot™ Cards
    AP9617
    Control panel
    LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
    Audible Alarm
    Alarm when on battery : distinctive low battery alarm : configurable delays
    Emergency Power Off (EPO)
    Tùy chọn

    Surge Protection and Filtering

    Surge energy rating
    480 Joules
    Filtering
    Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

    Physical

    Maximum Height
    222.00 mm
    Maximum Width
    483.00 mm
    Maximum Depth
    635.00 mm
    Rack Height
    5U
    Net Weight
    93.18 KG
    Shipping Weight
    102.27 KG
    Shipping Height
    635.00 mm
    Shipping Width
    610.00 mm
    Shipping Depth
    762.00 mm
    Color
    Beige

    Environmental

    Operating Environment
    0 - 40 °C
    Operating Relative Humidity
    0 - 95%
    Operating Elevation
    0-3000 meters
    Storage Temperature
    -15 - 45 °C
    Storage Relative Humidity
    0 - 95%
    Storage Elevation
    0-15000 meters
    Audible noise at 1 meter from surface of unit
    53.00 dBA
    Online Thermal Dissipation
    430.00 BTU/hr

    Conformance

    Regulatory Approvals
    C-tick, CE, EN 50091-1, EN 50091-2, GOST, TUV, VDE
    Standard Warranty
    2 years repair or replace, optional on-site warranties available, optional extended warranties available
