APC Smart-UPS 1000VA, 700W, LCD 230V (SMT1000i)

    9,050,000

    SMT1000i

    Thông tin nhanh về sản phẩm

    Smart-UPS
    SMT1000I
    APC Smart-UPS 1000VA, 700W, LCD 230V

    APC Smart-UPS,700 Watts /1000 VA,Input 230V /Output 230V, Interface Port SmartSlot, USB
    Includes: CD with software, Documentation CD, Installation guide, Smart UPS signalling RS-232 cable, USB cable


    Thay ắc quy (Replacement Battery)
    APC Replacement battery cartride #6 (APCRBC6)
    RBC #6 x 1
    = 24VDC, [12V-12Ah x 2]
    [LONG WP12-12SE, 12V-12AH] x 2
    Thông số kỹ thuật

    Output

    Output Power Capacity
    700 Watts / 1000 VA
    Max Configurable Power
    700 Watts / 1000 VA
    Nominal Output Voltage
    230V
    Output Voltage Note
    Configurable for 220 : 230 or 240 nominal output voltage
    Output Voltage Distortion
    Less than 5% at full load
    Output Frequency (sync to mains)
    47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
    Other Output Voltages
    220, 240
    Topology
    Line Interactive
    Waveform Type
    Sine wave
    Output Connections
    (8) IEC 320 C13 IEC 320 C13
    (2) IEC Jumpers

    Input

    Nominal Input Voltage
    230V
    Input Frequency
    50/60 Hz +/- 3 Hz (auto sensing)
    Input Connections
    IEC-320 C14
    Input voltage range for main operations
    160 - 286V
    Input voltage adjustable range for mains operation
    151 - 302V
    Other Input Voltages
    220, 240

    Batteries & Runtime

    Battery Type
    Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
    Typical recharge time
    3 hour(s)
    Replacement Battery
    RBC6
    RBC™ Quantity
    1
    Runtime Graph
    Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

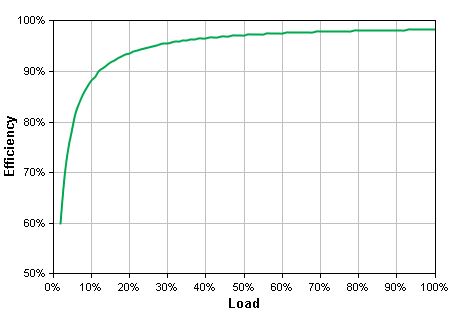

    Energy Use/Efficiency

    Load Efficiency
    25% 94.8%
    50% 97.2%
    75% 98.0%
    100% 98.3%
    Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output.

    Communications & Management

    Interface Port(s)
    SmartSlot, USB
    Available SmartSlot™ Interface Quantity
    1
    Control panel
    Multi-function LCD status and control console
    Audible Alarm
    Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
    Emergency Power Off (EPO)
    Tùy chọn

    Surge Protection and Filtering

    Surge energy rating
    459 Joules
    Filtering
    Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

    Physical

    Maximum Height
    219.00 mm
    Maximum Width
    171.00 mm
    Maximum Depth
    439.00 mm
    Net Weight
    18.86 KG
    Shipping Weight
    22.77 KG
    Shipping Height
    376.00 mm
    Shipping Width
    328.00 mm
    Shipping Depth
    595.00 mm
    Color
    Black
    Units per Pallet
    12.00

    Environmental

    Operating Environment
    0 - 40 °C
    Operating Relative Humidity
    0 - 95%
    Operating Elevation
    0-3000 meters
    Storage Temperature
    -15 - 45 °C
    Storage Relative Humidity
    0 - 95%
    Storage Elevation
    0-15000 meters
    Audible noise at 1 meter from surface of unit
    41.00 dBA
    Online Thermal Dissipation
    100.00 BTU/hr

    Conformance

    Regulatory Approvals
    C-tick, CE, EN 50091-1, EN 50091-2, VDE
    Standard Warranty
    3 years repair or replace (excluding battery) and 2 year for battery

    Sustainable Offer Status

    RoHS
    Compliant
    REACH
    REACH: Contains No SVHCs
    PEP
    Available in Documentation tab
    EOLI
    Available in Documentation tab
    Other Environmental Compliance
    China RoHS
